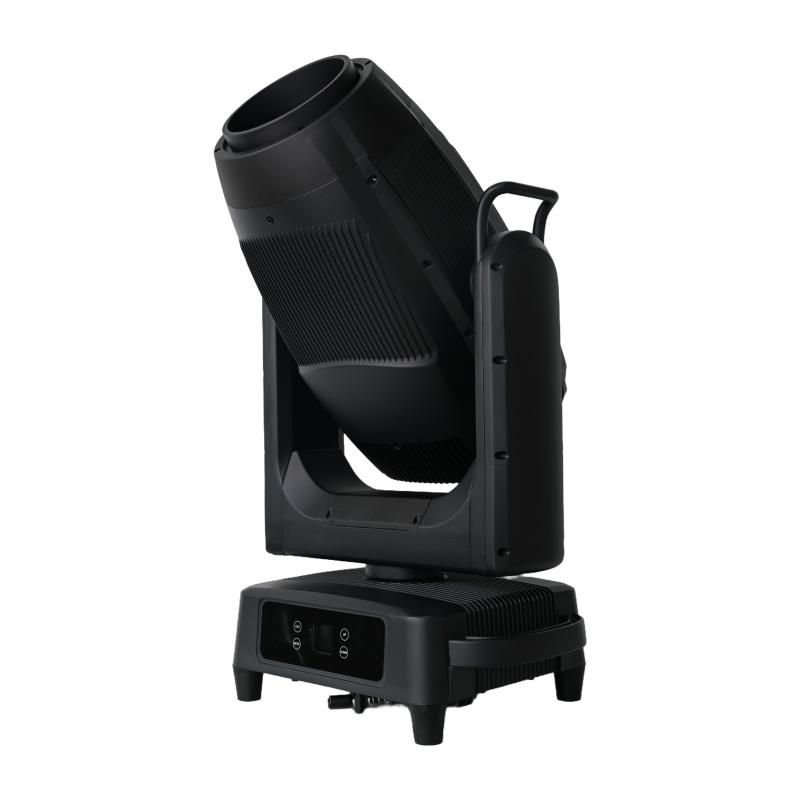

The ColorONE Apex Profile 1200 is a premium 1000W LED framing moving head light engineered for professional touring concerts, broadcast TV studios, opera theaters, corporate events and high-end rental markets, positioned as a cost-effective alternative to Robe, Claypaky, Elation and Martin mid-high range profile fixtures.
Equipped with a high-power 1000W white LED light source supporting dual CRI modes (CRI70 standard / optional CRI90 filter), this profile light delivers precise beam shaping, full-color mixing, advanced gobos, motorized iris and 4-side rotating cutting shutters, meeting strict lighting standards for live performance and film shooting. Built with full DMX512 & RDM control, online firmware upgrade function and stable high-temperature resistant housing, Apex Profile 1200 balances powerful optical performance and long-term operational reliability for rental companies and fixed venue installations.
The ColorONE Apex Profile 1200 is a premium 1000W LED framing moving head light engineered for professional touring concerts, broadcast TV studios, opera theaters, corporate events and high-end rental markets, positioned as a cost-effective alternative to Robe, Claypaky, Elation and Martin mid-high range profile fixtures.
Equipped with a high-power 1000W white LED light source supporting dual CRI modes (CRI70 standard / optional CRI90 filter), this profile light delivers precise beam shaping, full-color mixing, advanced gobos, motorized iris and 4-side rotating cutting shutters, meeting strict lighting standards for live performance and film shooting. Built with full DMX512 & RDM control, online firmware upgrade function and stable high-temperature resistant housing, Apex Profile 1200 balances powerful optical performance and long-term operational reliability for rental companies and fixed venue installations.
Product Details
Electrical Power
Input Voltage: AC 100-240VAC, 50/60Hz
Rated Power Consumption: 1200W @ 220V
Optical System
Light Source: 1000W High Power White LED
LED Service Life: 20,000 Hours
Zoom Beam Angle: 4° ~ 40° Linear DMX Adjustable
CRI Performance: Standard CRI70, Optional Remote CRI90 Filter
Color & Effect System
Color Wheel: 5 Fixed Colors + Pure White Light
Color Mixing: Linear CMY Subtractive Mixing + Linear CTO Warm Correction
Gobo Wheel 1: 6 Fixed Static Patterns + Running Animation Gobos + White
Gobo Wheel 2: 7 Rotatable Glass Gobos, Independent Bi-directional Rotation
Prism: 3-Facet Rotating Beam Prism
Frost: Independent Motorized Soft Frost Atomization
Iris: Motorized Linear Adjustable Iris
Framing Cutting
4-Way Mechanical Cutting Blade System, 120° Full Rotation
Motion & Dimming
Pan Range: 540° Horizontal Scan
Tilt Range: 270° Vertical Scan
Shutter: 0~25Hz Adjustable Strobe Speed
Dimming: 0-100% Dual Coarse/Fine Smooth Dimming
Control Protocol
Signal: DMX512 with Full RDM Function
DMX Channel Mode: 35 CH Standard Mode
Upgrade Method: Online Software Firmware Upgrade
Address Setup: Manual Dial Code Addressing
Data Port: Locking 3-Pin & 5-Pin XLR In/Out
Power Connector: Seetronic PowerCon Input & Loop Through
Physical Specs
Protection Grade: IP20
Housing Material: High Temperature Flame Retardant Plastic
Total Weight: 28 KG
Fixture Dimension: 383 × 274 × 683 mm
Operating Ambient Temperature: -20℃ ~ 40℃
Ideal Application Scenarios
Professional Theater & Opera Houses | Live Concert Touring | TV Broadcast & Studio Shooting
Corporate Event & Wedding Stages | Church Worship Lighting | Exhibition & Fashion Runway
Professional Stage Lighting Rental Companies | Fixed Installation Entertainment Venues
Brand Position Note
ColorONE Apex series is developed to deliver identical professional optical and control performance as premium European brands Robe, Claypaky, Martin and Elation, while offering competitive factory-direct pricing for global lighting distributors and rental operators.
Electrical Power
Input Voltage: AC 100-240VAC, 50/60Hz
Rated Power Consumption: 1200W @ 220V
Optical System
Light Source: 1000W High Power White LED
LED Service Life: 20,000 Hours
Zoom Beam Angle: 4° ~ 40° Linear DMX Adjustable
CRI Performance: Standard CRI70, Optional Remote CRI90 Filter
Color & Effect System
Color Wheel: 5 Fixed Colors + Pure White Light
Color Mixing: Linear CMY Subtractive Mixing + Linear CTO Warm Correction
Gobo Wheel 1: 6 Fixed Static Patterns + Running Animation Gobos + White
Gobo Wheel 2: 7 Rotatable Glass Gobos, Independent Bi-directional Rotation
Prism: 3-Facet Rotating Beam Prism
Frost: Independent Motorized Soft Frost Atomization
Iris: Motorized Linear Adjustable Iris
Framing Cutting
4-Way Mechanical Cutting Blade System, 120° Full Rotation
Motion & Dimming
Pan Range: 540° Horizontal Scan
Tilt Range: 270° Vertical Scan
Shutter: 0~25Hz Adjustable Strobe Speed
Dimming: 0-100% Dual Coarse/Fine Smooth Dimming
Control Protocol
Signal: DMX512 with Full RDM Function
DMX Channel Mode: 35 CH Standard Mode
Upgrade Method: Online Software Firmware Upgrade
Address Setup: Manual Dial Code Addressing
Data Port: Locking 3-Pin & 5-Pin XLR In/Out
Power Connector: Seetronic PowerCon Input & Loop Through
Physical Specs
Protection Grade: IP20
Housing Material: High Temperature Flame Retardant Plastic
Total Weight: 28 KG
Fixture Dimension: 383 × 274 × 683 mm
Operating Ambient Temperature: -20℃ ~ 40℃
Ideal Application Scenarios
Professional Theater & Opera Houses | Live Concert Touring | TV Broadcast & Studio Shooting
Corporate Event & Wedding Stages | Church Worship Lighting | Exhibition & Fashion Runway
Professional Stage Lighting Rental Companies | Fixed Installation Entertainment Venues
Brand Position Note
ColorONE Apex series is developed to deliver identical professional optical and control performance as premium European brands Robe, Claypaky, Martin and Elation, while offering competitive factory-direct pricing for global lighting distributors and rental operators.
